| 安装部位： | 末端 |
| 内径： | 125mm |
| 硬度： | 64HRC |
| 工作压力： | 85bar |
| 管净重： | 随度数变化 |
| Location: | Boom Pipe |
| Diameter: | 125mm |
| Wall Thickness: | Biased toward highest wear areas |
| Hardness: | 64HRC |
| Working Pressure: | 85bar |
| Pipe Weight(net): | varies per degree |
|

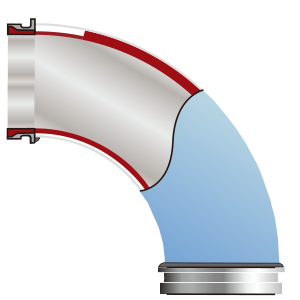

DN125/5 BOOM ELBOWS With 148mm chrome carbide insert (cci) weld ends. |
|||
|
Degree of Angle |
System (mm) |
Radius (mm) |
Weight (including 2 ends) |
| 90 | 125 | 275 | 14.8 |
| 90 | 125 | 180 | 11.2 |
| 90 | 125 | 190.5 | 12.5 |
| Other degree elbows and ends are available upon request. Consult factory. | |||
