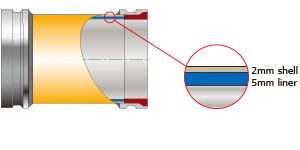

| 安装部位： | 走台管 |
| 类型： | 双层高频淬火 |
| 内径： | 125mm |
| 外径： | 139mm |
| 壁厚： | 7mm（5.0mm+2.0mm） |
| 硬度： | 61HRC |
| 工作压力： | 85bar |
| 管净重： | 22.8kg/m |
| Location: | Deck Pipe |
| Type: | Twin wall Induction Hardened |
| Inside Diameter: | 125mm |
| Outside Diameter: | 139mm |
| Wall Thickness: | 7mm（5.0mm+2.0mm） |
| Hardness: | 61HRC |
| Working Pressure (min): | 85bar |
| Pipe Weight (net): | 22.8kg/m |

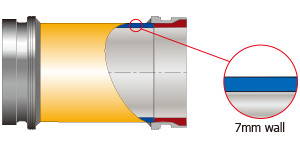

| 安装部位： | 走台管 | |
| 类型： | 单层ST52 | |
| 内径： | 125mm | |
| 外径： | 139mm | |
| 壁厚： | 7mm | |
| 硬度： | 无 | |
| 工作压力： | 85bar | |
| 管净重： | 22.8kg/m | |
| Location: | Deck Pipe | |
| Type: | Single Wall ST52 Material | |
| Inside Diameter: | 125mm | |
| Outside Diameter: | 139mm | |
| Wall Thickness: | 7mm | |
| Hardness: | none | |
| Working Pressure (min): | 85bar | |
| Pipe Weight (net): |
|
| 类型： | 双层变径 |
| 硬度： | 67HRC |
| 工作压力： | 85bar |
| 管净重： | 14.4kg/m |

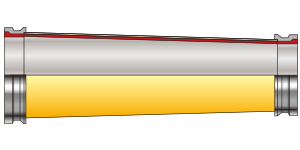

| Reducer: | Chrome carbide lined |
| Hardness: | 64HRC |
| System: | Varies |
| Weld ends: | Steel with chrome carbide inserts |
| Weight: | Varies per length |
| Working Pressure (min): | 85bar |
| DN150/6 To DN125/5 TWIN WALL REDUCER | |||
| Length (mm) | Inlet End (DN150/6) | Outlet End (DN125/5) | Weight (KG) |
|
1200 （varies) |
ZX |
SK 148 （varies) |
43.5 |
| Other degree elbows and ends are available upon request. Consult factory. | |||
| 类型： | 双层变径 |
| 规格： | DN150-DN125 |
| 工作压力： | 85bar |
| 壁厚： | 10mm |
| 管净重： | 随长数变化 |

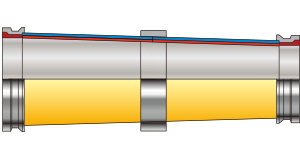

| Reducer | Twin wall hardened reducer(split) |
| Heat Treatment | Induction Hardened |
| System | DN150/125 |
| Weld ends | Steel with chrome carbide inserts |
| Wall Thickness | 10mm |
| Working Pressure (min) | 85bar |
| DN150/6 To DN125/5 TWIN WALL REDUCER | |||
| Length (mm) | Inlet End (DN150/6) | Outlet End (DN125/5) | Weight (KG) |
|
1200 （varies) |
ZX |
SK 148 （varies) |
43.5 |
| Other degree elbows and ends are available upon request. Consult factory. | |||
