| 安装部位： | 臂架管 |
| 类型： | 高锰钢铸造 |
| 内径： | 125mm |
| 工作压力： | 85bar |
| 管净重： | 随度数变化 |

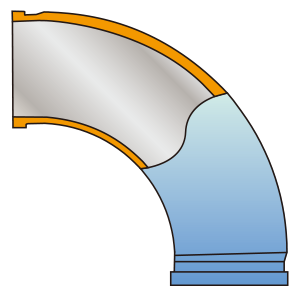

| Location: | Elbow 90° |
| Type: | Cast Manganese |
| Diameter: | 125mm |
| Elbow Bend Angles: | From 5° to 90° |
| Wall Thickness: | Biased toward highest wear areas |
| Working Pressure (min): | 85bar |
| Pipe Weight (net): | Varies per degree |
|
DN125/5 BOOM ELBOWS With 148mm chrome carbide insert (cci) weld ends. |
|||
|
Degree of Angle |
System (mm) |
Radius (mm) |
Weight (including 2 ends) |
| 15 | 125 | 275 | 7.5 |
| 20 | 125 | 275 | 4 |
| 30 | 125 | 275 | 5 |
| 45 | 125 | 275 | 7 |
| 90 | 125 | 275 | 15.5 |
| Other degree elbows and ends are available upon request. Consult factory. | |||
|
DN125/5 BOOM ELBOWS With 148mm chrome carbide insert (cci) weld ends. |
|||
| Degree of Angle | System (mm) | Weight(including 2 ends) | |
| 90 | 125 | 18Kg | |
