BOOM ELBOW

双层臂架弯管

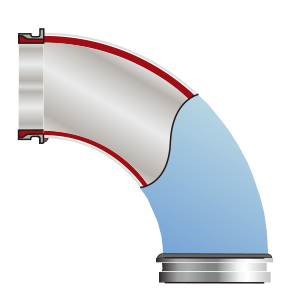

TWIN-WALL BOOM ELBOW


我们特殊工艺的双层弯管在臂架末端也可以输送高方量的混凝土,而且它们在砖塔和臂架可以输送与直管同等方量。
Our special twin wall elbow can deliver very high volume  concrete in the boom ends, and they can also deliver the same volume concrete both in turret and boom.


KKR 10301

管件描述:
KEY PIPE SPECIFICATIONS AT A GLANCE

安装部位: 臂架管
内径: 125mm
硬度: 64HRC
工作压力: 85bar
管净重: 随度数变化
Location: Boom Pipe
Diameter: 125mm
Wall Thickness: Biased toward highest wear areas
Hardness: 64HRC
Working Pressure: 85bar
Pipe Weight(net): varies per degree

DN125/5 BOOM ELBOWS
   With 148mm chrome carbide insert (cci) weld     ends.
Degree of
Angle
System
(mm)
Radius
(mm)
Weight
(including 2 ends)
90 125 275 13.2/15.8
90 125 180 10
30 125 275 5.4
45 125 275 7
10 125 275 3.9
20 125 240 5.1
60 125 232 10.2
Other degree elbows and ends are available upon request. Consult factory.

DN125/5 BOOM ELBOWS
   With 148mm chrome carbide insert (cci) weld     ends.
Degree of Angle System (mm) Weight(including 2 ends)
90 125 14.2Kg



KKR 10303

管件描述:
KEY PIPE SPECIFICATIONS AT A GLANCE

安装部位: 臂架管
内径: 117mm
硬度: 64HRC
工作压力: 85bar
管净重: 随度数变化
Location: Boom Pipe
Diameter: 117mm
Wall Thickness: Biased toward highest wear areas
Hardness: 64HRC
Working Pressure: 85bar
Pipe Weight(net): varies per degree

DN125/5 BOOM ELBOWS
   With 148mm chrome carbide insert (cci) weld     ends.
Degree of Angle System (mm) Radius (mm) Weight (including 2 ends)
15 117 / 5
20 117 / 5.2
30 117 / 6
45 117 / 8.6
90 117 / 13.8
Other degree elbows and ends are available upon request. Consult factory.
